Daily Watermakers Aquamate Series 1 75GPH Modular Manual System AQI1800M

(No reviews yet) Write a Review
SKU:
AQI1800M
Condition:
New
For your low price, use the Special Pricing Form below or Call: 619.222.9613

Description

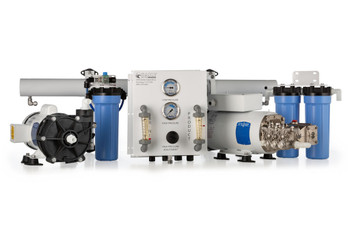

Daily Watermakers Aquamate Series 1 75GPH Modular Manual System AQI1800M


The Daily Watermakers Aquamate Series 1 marine desalination system is our non-automated, modular, and economic machines built for a wide range of boats. The easy to use system is operated by pressing on/off switches for both the feed pump and the marine high pressure pump. Then simply adjusting the pressure for the rated product water output. This system excludes automated features for an economic choice in seawater desalination systems.


Features & Specifications:

  • No Electronics / "No Frills"
  • Produces 75 gallons of Drinkable Water in One Hour
  • Quiet - Vibration Isolated - High Pressure Pump and Motor
  • Marine Grade 316 Stainless Steel High Pressure Components
  • Modular components make it easy to install in limited space
  • 316 Stainless Steel Low Pressure Pump Motor Shaft
  • Safety Switches Included
  • Stainless Steel 316 Low Pressure Pump Motor Shaft
  • Corrosion Resistant Low Pressure Pump head
  • Stainless Steel 316 High Pressure Pump Head
  • Low Pressure Switch
  • High Pressure Switch
  • Includes Installation Kit for an all in One Purchase
  • 2 Year Warranty

Whats Included:

  1. Flow control panel
  2. on/off control box
  3. high pressure pump set
  4. low pressure pump
  5. pressure vessel/membrane and mounting components
  6. pre-filter assembly
  7. Fresh Water Flush assembly
  8. Sea Strainer
  9. Additional Fittings and hose/tube for typical installs

Specifics:

  • Flow Control Panel
    • The control panel was built with the marine environment in mind. This unit has a glossy white powder coated partially enclosed frame/panel box. The panel is made with every intention of compactness while retaining performance and ease of use. Built with two long lasting, easy to service flow meters, one for the product water and one for the brine flow. Both flow meters are very important for understanding how much water you are making and at the same time making sure you are not flowing too much or not enough water. The Daily Watermaker panel also has two gauges, one high pressure and low pressure gauge. Both are glycerin filled, stainless steel housings, and nickle plated 1/4" NPT connections. The flow control valve is centrally mounted and it is marine grade built. Also located on the flow control panel is a product tank selector valve, which is very simple to use and clearly marked.
  • High Pressure Pump Set
    • Unlike the Series II framed unit, this high pressure pump set (close coupled high pressure pump and motor) is a modular piece. Our pump head is flow specific, meaning if you only need 3 gallons per minute of water, that is what we will use. This means, Daily uses the appropriate size motor as well, the watermaker will not draw more power than is needed. The motors are specifically built for Daily Watermakers; they are Baldor high efficiency motors, powder coated yacht white, fixed rotation (very important), and have long lasting vibration dampeners for mounting. As mentioned before the high pressure pump head is 316 Stainless Steel and specifically made for reverse osmosis systems.
  • Low Pressure Pump
    • This pump is very important because it will increase the performance and longevity of the rest of the components. Daily uses a high output pump, with a corrosion resistant pump, and a 316 stainless steel shaft which is far and away the best in the industry.
  • Pressure Vessel
    • The pressure vessel, which is the enclosure for the membrane filter element, is a shiny white finish fiberglass tube with stainless steel end plugs.
  • Membrane
    • Daily uses some of the highest rated flow membranes for a standard size.

Questions?


  • No sales tax on purchases outside of California
  • Built to Order - Average 30 day lead time

International Customers: We Ship Worldwide, Shipping Cost May Quote Too High on Our Web Site, contact us for a quote.

View AllClose

Warranty Information

Daily Watermakers offers a limited 2 year warranty from the date of delivery.
