Phasor Marine LP1-3.5kW Low Profile Diesel Boat Generator

(No reviews yet) Write a Review
  • Phasor Marine LP1-3.5kW Low Profile Diesel Boat Generator
  • Phasor Marine LP1-3.5kW Low Profile Diesel Boat Generator
  • Phasor Marine LP1-3.5kW Low Profile Diesel Boat Generator
For pricing use the "Request Special Pricing" form below
Built to Order - Typical Lead Time is 30 Days

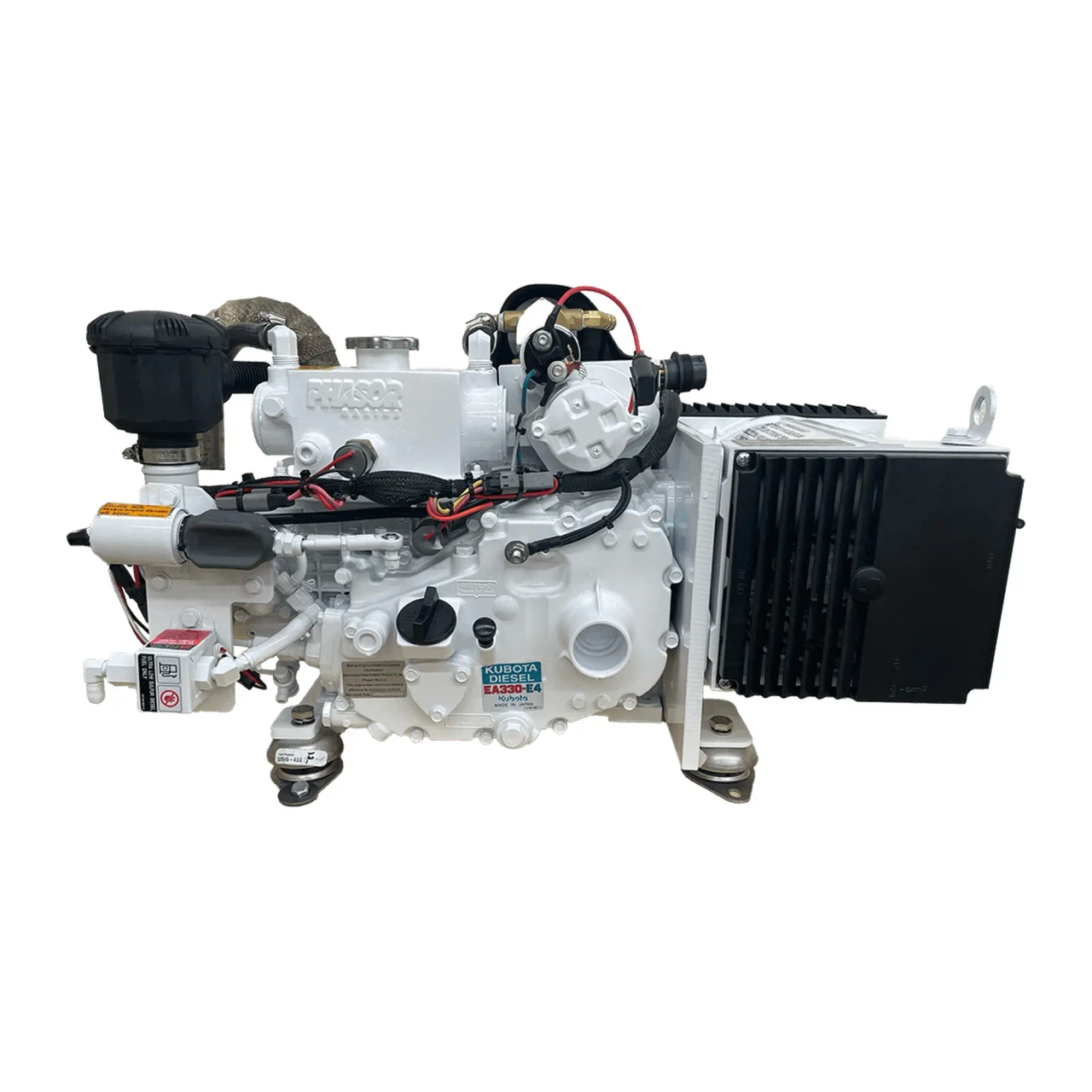

Phasor Marine LP1-3.5 Low Profile Boat Generator

The Phasor Marine 3.5Kw generator is one of the most popular marine diesel gensets for boats 20' - 40'. The unit outputs 30 amps on 120VAC at a low 2,800 RPM operating speed; powered by a Kubota single cylinder diesel engine.

To receive Special Pricing on this unit, please click on the Request Special Pricing form below.


Product Features:

  • Engine Features
    • Kubota Diesel Engine: EA300NB - 1 Cylinder - 19 displacement - Spherical combustion
    • Heavy Duty Syncro-cogged timing belt drive system
    • Safety shutdown system for high coolant temp or low oil pressure
    • Air Intake Cleaner / Silencer
    • Stainless Steel water cooled exhaust riser
    • Stainless Steel 4-Point isolation mounts
    • Awl-Craft 2000 Urethane Finish - Long Lasting Gloss - Color Retention
  • Electrical Features
    • Single series circuit control system with no printed circuit boards - tinned wiring
    • Remote 12V Electric Key Switch with preheat, start/run/stop
    • Integral terminal strip connection for remote start system and a/c termination
  • Fuel System Features
    • Raccor Fuel/Water Separator
    • USCG Approved fuel lines
    • Self Bleed Fuel System
  • Oil System Features
    • Forged Brass Oil Drain Valve with Safety Lock
  • Cooling System Features
    • Belt driven impeller type raw water pump
    • Cast Bronze Heat exchanger tank with removable end caps
    • Freshwater Double Pass Heat Exchanger - zinc anode inside

Product Specifications:

  • Dimensions
    • (LxWxH) 28"x 16.0"x 15"
    • w/ Sound Enclosure 31.5"x20"18.5"
    • Weight 185lbs
  • Electric End: Sincro
  • Operating Speed: 2,800 RPM (Less wear and tear compared to a 3,600RPM Genset)
  • Output Volts: 120/240
  • Output Amps: 30/25
  • Output Watts: 3,500
  • Phasor Marine 5 Year Limited Warranty

Optional upgrades:

  • Remote Panels
    • Start/Stop Panel w/o hour meter & 20ft harness - 101-0092
    • Start/Stop Panel w/ hour meter & 20ft harness - 101-0059
    • Start/Stop Panel w/ Four Gauges & 20ft harness - 101-0060
    • w/ 10 ft extension harness - 101-0061
    • w/ 20 ft extension harness - 101-0062
    • Relay Pak needs to be used with harnesses over 20ft -101-0333
  • Other Parts:

Downloads & Resources:

View AllClose

Warranty Information

Seatech Marine Products is an authorized dealer for Phasor Generators. This part has a limited 5 year warranty from them. See below under downloads for full warranty information.
