Seastar AP1219 Marine Hydraulic Autopilot Pump 12V Type 1 60in.³ Per Min.

(1 review) Write a Review
SKU:
AP1219
UPC:
4457000109
Condition:
New
  • Seastar AP1219 Marine Hydraulic Autopilot Pump 12V Type 1 60in.³ Per Min.
  • Seastar AP1219 Marine Hydraulic Autopilot Pump Type 1 12v 60cu. In. Per Min
  • Seastar AP1219 Marine Hydraulic Autopilot Pump Type 1 12v 60cu. In. Per Min
  • Dimensions for the Seastar Auto Pilot Pump AP1219
  • Seastar AP1219 Marine Hydraulic Autopilot Pump 12V Type 1 60in.³ Per Min.
  • Seastar AP1219 Marine Hydraulic Autopilot Pump 12V Type 1 60in.³ Per Min.
  • Seastar AP1219 Marine Hydraulic Autopilot Pump 12V Type 1 60in.³ Per Min.
MSRP: $751.97
$564.97
— You save $187.00
In Stock - Ships FREE Same Day Before 5pm EST M-F

Description

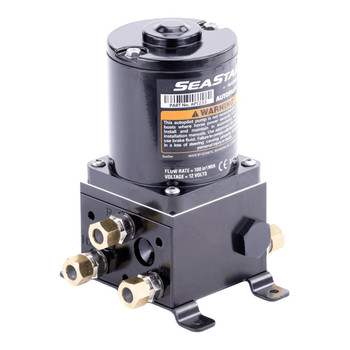

SeaStar AP1219 Autopilot Pump Type 1 60in.³ per min. - 12 Volt


The Dometic SeaStar AP1219 is a highly reliable, plug n play autopilot pump that comes in 12 or 24 volt configurations and two fixed flows 60 cu. in./min and 100 cu. in./min. The autopilot pump is a reversible type set that uses an internal hydraulic gear pump. It is fairly compact (see pictures) and produces very little noise and vibration. It is primarily used as a stand alone pilot pump on boats or it can be retrofitted to a SeaStar P/A unit.


Features:

  • Long life DC Motor - long life brushes
  • Compact design - easy to mount
  • Simplified installation - can be put into almost any hydraulic steering system
  • Low power consumption
  • ABYC, CE and J1171 compliant
  • Marine Grade Engineering - Corrosion resistant
  • Whisper quiet
  • Mounting bracket included
  • Stand alone or mounts to SeaStar Power Assist unit
  • Direct replacement for other 12 volt and 24 volt autopilot pumps

Specifications:

  • Input Voltage: 12VDC
  • Max PSI Rating: 1000PSI
  • Flow Rate: 60 cubic inches per. min with no load
  • Typical Current Draw: 4-8 Amps (Up to 300PSI)
  • Cylinder Capacity: 4.9-12.5 Cu.In.
  • Fluid Compatibility: SeaStar Steering Fluid HA5430H or MIL Spec H5606QT
  • Applications: Inboard, outboard , and I/O steering systems
  • Warranty: 2 Years Limited
  • 24" 12 AWG Wire - no connectors

Dimensions:

  • Dimensions product depth 4.61 "
  • Dimensions product height 6.63 "
  • Net weight 6.55 lbs.

AP1219 Dimension Diagram:


Tools Required to Complete Installation:

  • 1/2" and 3/4" Open-ended Wrench
  • Wire Cutters, crimpers, soldering iron
  • Screwdriver for attaching mounting plate

Downloads & Resources:

  • SeaStar Autopilot Pump Product Sheet [PDF]
  • Autopilot Pump Installation Instructions [PDF]
  • Autopilot Pump Fill and Purging Instructions [PDF]
  • SeaStar Steering Catalog [PDF]
  • SeaStar Hydraulic Steering Selection Guide [PDF]
  • Dometic Seastar Hydraulic Build Guide [HERE]

Related Products:

Power Assist & Auto Pilot Combo:

  • PA6010: Power Assist w/AP1219 12v Type 1
  • PA6020: Power Assist w/AP1233 12v Type 2
  • PA7010: Power Assist w/AP2419 24v Type 1
  • PA7020: Power Assist w/AP2433 24v Type 2


Alternative Pump to The Following (but not limited to):

  • Simrad RPU
  • SI-TEX reversing autopilot
  • Furuno Navpilot autopilot pump HRP11-12
  • Accu-steer reversing autopilot pumps HRP
  • Raymarine Reversing autopilot pump M81120
  • Comnav reversing autopilot pump
  • Octopus reversing autopilot pump
