Seastar HH5218-3 PRO Front Mount 1.7 Commercial Grade Marine Hydraulic Helm Pump

(No reviews yet) Write a Review
SKU:
HH5218-3
UPC:
HH52183
Condition:
New
MSRP: $825.97
$694.97
— You save $131.00
In Stock - Ships FREE Same Day Before 5pm EST M-F

Description

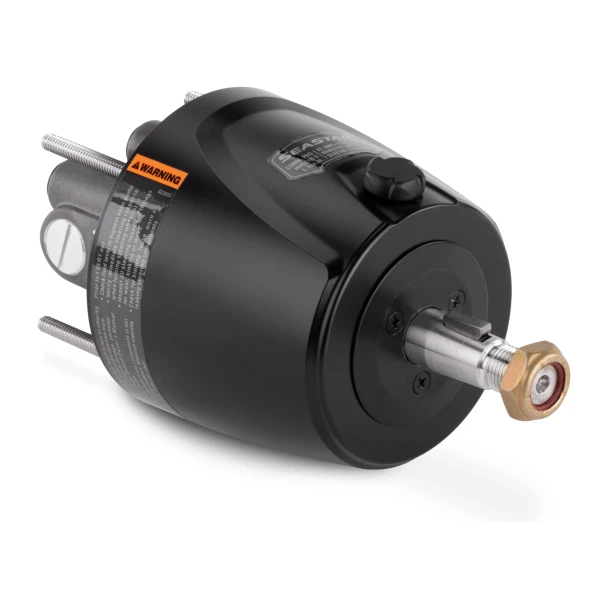

SeaStar HH5218-3 PRO Front Mount 1.7 Commercial Grade Marine Hydraulic Helm Pump

(Replaces Obsolete HH5218 updated ORB fittings)

SeaStar PRO outboard steering helms (HH52183) and cylinders are suited for critical high speed, single powered outboard boats, like bass, flats, combo race/ski and other performance orientated boats capable of speeds in excess of 60mph. Are you a performance boater? Dometic SeaStar Pro is the perfect steering system for you! It's designed for high-speed single engine outboards and is the premier SeaStar Solutions No Feedback System. With Dometic SeaStar Pro, you'll have uncompromising steering control, which is essential for critical high-speed outboard powered boat applications like Bass, Flats, Combo Race and Ski, and other performance boats capable of speeds in excess of 60 MPH. Dometic SeaStar Pro has been the choice of high-performance outboard boat builders since 1994 and has steered the Bass Masters for years.

Features:

  • 4.88 turns lock-to-lock (Measured with a HC6345-3)
  • Only needs a 3" dash cut out
  • 3/4" Tapered steering shaft

Notes:

Downloads & Resources:

  • SeaStar Boat Helm Pump Installation Manual [PDF
  • SeaStar Marine Hydraulic Steering Selection Guide [PDF
  • SeaStar Marine Steering Catalog [PDF]

CAUTIONS:

  • Do NOT use teflon or loctite on the fittings.
  • Do NOT try to install NPT fittings into helm pump as it may cause damage to the threads.
  • The fluid cap must be in the uppermost position at ALL times.
  • NEVER use brake fluid, only SeaStar Steering fluid or Mil Spec H5606 Fluid.

Installation Notes:

  • The helm pump is packaged with re-positionable o-ring hose fittings (ORB).
  • If a 20° mounting wedge is used, cut out dash as per mounting wedge template and mount helm directly to the 20° wedge.
  • The helm may be mounted with the helm shaft horizontal, vertical, or any angle in between.
  • Install the hose fittings before installing helm pump for ease of installation.

Questions?



  • FREE Ground Shipping to the Contiguous 48 States
  • No Sales Tax on Purchases Outside of California
  • Formerly Teleflex, Seastar is now Dometic Marine

International Customers: We Ship Worldwide, Shipping Cost May Quote Too High on Our Web Site, contact us for a quote.

View AllClose

Warranty Information

Seatech Marine Products is an authorized dealer for Dometic that distributes Seastar Products, this part has a 2 Year Limited Warranty from them. Please visit their website for full details: https://www.dometic.com/en-us/outdoor/support/warranty-statements
