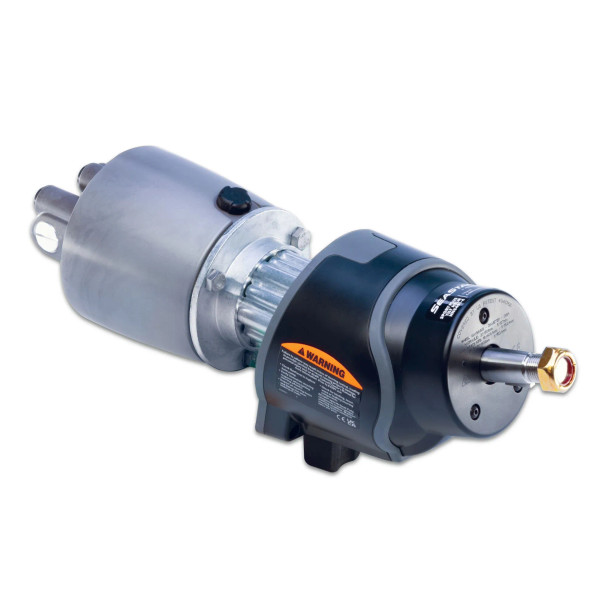

SeaStar HH6491-4 Sport Plus Tilt 1.7 Hydraulic Boat Helm Pump

SeaStar HH6491-4 Sport Plus Tilt 1.7 Hydraulic Boat Helm Pump

The Dometic Seastar tilt steering marine hydraulic helm pump (HH64914). Flexibility of installation makes it the perfect helm pump for many applications and boat types. SeaStar hydraulic marine steering is the smoothest and most efficient steering system available today. Designed for normal pleasure and commercial use where standard rigging arrangements are in use.

Important Update: Seastar Helm Update to -4

The latest series of helms has been redesigned to provide a better experience for the vessel operator:

• New valve technology ensures tighter, quieter, and more responsive steering, while minimizing the potential for chattering when dealing with overrunning steering loads.
• More durable check valves, making the entire steering system more resilient to the rigors of trailering.
• Revamped Design to enhance their aesthetics, and has introduced a new fill port plug design for easier maintenance.
• HH6491-4 replaces the HH6491-3, HH6491 and is the direct replacement.

Applications:

• Most Hydraulic Steering applications for inboard/sterndrive/outboard boats up to 50ft
• Single outboard engine boats that travel up to 55MPH, for boats over 55-60MPH see PRO Helm Pumps
• Capable to be used in multiple stations

Features:

• Preloaded dual taper bearings ensure minimal excess free play
• Smooth Operation and Feel
• 48° of tilt articulation
• 5 positive lock positions
• Standard 3/4" tapered steering shaft
• Accepts wheels up to 20"
• Maintenance Free

Specifications:

• 1.7 cubic inches
• 1000 PSI Relief Valve Settings

What Comes In The Box:

• HH6491-4 Helm Pump
• Mounting Hardware
• HF6004 Fitting Kit 2x ORB-5 90° repositionable elbow fittings

Downloads & Resources:

• SeaStar Boat Helm Installation Manual [PDF]
• SeaStar Hydraulic Steering Selection Guide [PDF]
• SeaStar Marine Steering Catalog [PDF]
• Dometic Seastar Hydraulic Build Guide [HERE]
• We can rebuild your HH6491-4 [HERE]

Related Items & Spare Parts:

• HA5430H 1 Quart of SeaStar Fluid
• HA5438 Helm Bottle Filler Kit
• HP6032 Service Kit
• HF6004 Fittings
• HA5432 Non Vent Cap
• Seastar Hose
• Seastar Helm Pumps
• Seastar Cylinders

Alternatives:

1. 1.7 cu.in. Sport Tilt (Soft Bellows Cover) HH6191-3
2. 1.7 cu.in. Classic Tilt (Replaces older traditional tilt helms) HH6541-3
3. 1.7 cu.in. Front Mount Helm Pump HH5271-3
4. 1.7 cu.in. PRO Sport Plus Tilt (Rated at 1500PSI - for "Aggressive USE") HH6489-3
