Dometic Seastar
SeaStar HK7500A-3 PRO Hydraulic Steering System Kit Without Hoses
- SKU:
- HK7500A-3
- UPC:
- HK7500A3
Description
SeaStar HK7500A-3 PRO Hydraulic Steering System Kit Without Hoses
The SeaStar PRO (HK7500A3) is designed for high torque SINGLE non-power-assisted up to 350HP outboard applications such as high performance bass boats. SeaStar PRO has steered the BASS Masters Classic since 1994 and it's the choice of high performance outboard boat builders. It is suitable for use with high-performance propellers and jack plates.
Important: SeaStar Helm Update to -4
The latest series of helms have been redesigned to provide a better experience for the vessel operator:
- You can find the updated HK7500-4 KIT HERE
- New valve technology ensures tighter, quieter, and more responsive steering, while minimizing the potential for chattering when dealing with overrunning steering loads.
- More durable check valves, making the entire steering system more resilient to the rigors of trailering.
- Revamped Design to enhance their aesthetics, and has introduced a new fill port plug design for easier maintenance.
- Kits with hoses are discontinued, we provide the hose and option to upgrade the hose fittings ON US!
- HK7500-4 replaces the HK7500A-3, HK7500 and is the direct replacement
Applications:
- Single Non-Power Assisted Outboards Up to 350HP
- SeaStar PRO has been installed on premium bass boats as original equipment for many years. It's the ideal upgrade for twin-cable mechanical steering.
Features and Benefits:

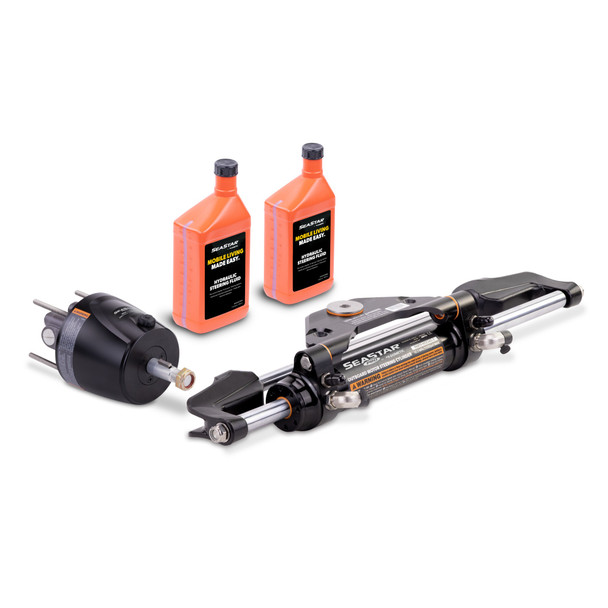

- Complete Kit less hoses - Helm Pump, steering ram/cylinder, fittings, oil, bleeder kit, and detailed instructions.
- The PRO unique valve system keeps pressure at both hydraulic lines equal - the wheel feels solid and sure at all times.
- The PRO cylinders are manufactured with longer shaft bushings and larger pivot bushings for an even more solid feel.
- Low friction hydraulic steering - less steering fatigue
- Compact helm pump - 4 7/16" footprint
- Factory Swaged hoses - kevlar reinforced - rated at 1500PSI. NORMAL HOSES ARE RATED @1000PSI
Specifications for Items Included with Pictures:
- HH5770-3 PRO 2.0 Front Mount Helm Pump
- Turns Lock to Lock: 4.25
- Dash Cut Out Dia: 3"
- Footprint Dimensions: 4.4375"
- Shaft Size: 3/4" Taper
- HC6345-3 PRO Front Mount Outboard Cylinder
- Bore Dia: 1.375"
- Nominal Shaft Dia: 0.75"
- Displacement: 8.34in³/rev
- HA5430H SeaStar Hydraulic Steering Fluid
- Quantity: 2 Quarts
Application Guide:
MFG | YEAR | MODEL | CYLINDER | NOTES |
Honda | 1996-Date | 150-300HP | HC6345-3 | BF Engines See Below |
Honda | 2001-Date | BF200-BF250 | HC6345-3 | Requires HA5472 |
Honda | 2003-Date | BF150 | HC6345-3 | Requires HA5472 |
Johnson/Evinrude |
1977-1990 2002-Date 2003-Date 2005-Date |
150-300HP 150-250HP 4 Stroke 150-300HP Etech E250HP Vindicator |
N/A HC6345-3 HC6345-3 N/A |
|
Mercury | 1989-Date | 150-300 XS Engines | HC6345-3 | |
Mercury | 1989-Date | 150-300HP 2-Stroke & 4 Stroke | HC6345-3 | |
Suzuki | 1986-Date | 150-300HP 2-Stroke & 4 Stroke | HC6345-3 | |
Yamaha | 1986-Date | 150-350HP 2-Stroke & 4 Stroke | HC6345-3 |
Helm Pump and Cylinder Dimensions:
How to Measure Hydraulic Steering Hoses:
SeaStar PRO Hose Selection:
- HO57XX SeaStar PRO Hoses without Bulkhead fittings (Included in Kits) (2 hoses per box, Can Be Purchased In Lengths 2'-30')
- HO82XX SeaStar PRO Hoses with Bulkhead fittings (2 hoses per box, Bulkhead fittings are separate)
- HO89XX SeaStar PRO Hoses with Double Stainless Bulkhead Fitting (2 hoses per box, Bulkhead fitting couples both hoses together)
- HO87XX SeaStar PRO Hoses with Single Stainless Bulkhead Fittings (2 hoses per box, Stainless bulkhead per hose separated hoses)
Related Items:
- SeaStar PRO Tilt Helm Kit - Round Base (Sport)
- SeaStar PRO Tilt Helm Kit - Square Base (Classic)
- SeaStar PRO HK7514A-3 Kit with SeaStar PRO Power Assist - Drives perfect with no effort
- SeaStar HA5419 20° Dash Wedge Kit
Downloads Section:
Outboard Cylinder Installation Manual [PDF] Front Mount Helm Pump Installation Manual [PDF] SeaStar Catalog [PDF]
