Sidepower SH160/215T-U08 Thruster Unit with Parker Ultra Motor 8cm3, Max Thrust 160kg/352lbs

(No reviews yet) Write a Review
SKU:
SH160/215T-U08
Condition:
New
$0.00
Typically Ships in 1-2 Business Days

Description

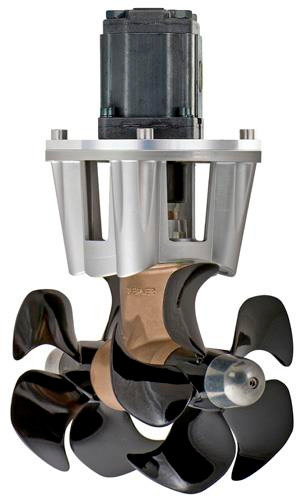

Side-Power SH160 Hydraulic Thruster with Parker Ultra Motor 8cm3, Max. Thrust 160kg/352lbs, Sealed Gearleg, Twin 5-Bladed Q-Props

Side-Power's SH160 can be installed as a bow or stern thruster, allowing improved control of the vessel.  The five blade Q-Props are designed to maximize thrust from the given tunnel size while reducing noise.  The thruster is typically part of a Side-Power engineered hydraulic system; however, it can be matched to an existing hydraulic system.

A complete Side-Power engineered system allows full proportional control of the thruster and unlimited run time, all based on the S-Link plug and play system.  Learn more about Side-Power hydraulic thruster systems.  Contact your local Side-Power representative for a system tailored to your needs.



Features & Benefits

  • Wide range of hydraulic motor sizes and types to optimize performance of the thruster unit
  • Unlimited run time at any thrust level, including max thrust
  • Reduced long term maintenance when compared to DC or AC thrusters
  • Improved maaximum thrust based on tunnel size
  • Total integration into any hydraulic system or supplied as part of a Side-Power engineered system

Performance

  • Propulsion technology know-how, maximizing amount of thrust from the system
  • Lightweight composite propellers reduce work needed to get up to speed and stop rotation
  • Streamlined gear housing, reducing turbulence in the tunnel and maximizing flow

Installation

  • Compact size to reduce the amount of interior volume needed
  • Simple Plug and Play wiring
  • Easily accessible hose connections
  • Fast and safe propeller mounting with lock nut
  • GRP and composite bolt-on stern thruster tunnel kits pre-drilled for ease of installation
  • Easy access zinc anodes allow quick and simple changing
  • Sealed gearleg so no messy oil fill-ups needed during installation

Safety and Reliability

  • Mechanical protection of drive gear through flexible coupling between gearleg and motor
  • Control panels have child-safe On system and timed shut down from last use
  • 2 year limited warranty
Light Duty Thrust 352 lb (160 kg)
Heavy Duty Thrust 308 lb (140 kg)
Typical Boat Size 35-62' (11-19 m)
Tunnel Diameter (I.D.) 8.46" (215 mm)
Propulsion System Twin, 5-bladed Q-Props
Hydraulic Power 13.4hp(10kW)
Motor Size 8cm³ (0.48 in.³)
Manufacturer Side-Power
Pump Output 15.8hp(11.8kW)
Required Pressure 214bar(3104psi)
Required Flow 33lpm(8.7gpm)
Min Depth to Top of Tunnel 6.38" (162mm)
Min Depth to Center of Tunnel 12.72" (323mm)
