BayStar HP4601 Seal Kit With Glands ORB for -3 Cylinders

(No reviews yet) Write a Review
SKU:
HP4601
Condition:
New
MSRP: $129.97
$114.97
— You save $15.00
In Stock - Ships Same Day (Order By 5pm EST M-F)

Description

BayStar HP4601 Seal Kit with Glands (ORB) for -3 Cylinders


OEM Seal and Gland Kit for BayStar Outboard Cylinders

The Dometic BayStar HP4601 Seal Kit is designed for BayStar Front Mount Outboard Cylinders using -3 ORB hydraulic fittings, specifically including models HC4645-3, HC4647-3, HC4648-3, and HC4658-3. This complete service kit includes replacement end glands, seals, O-rings, hardware, and installation components to ensure secure, long-lasting steering cylinder performance.

This version uses ORB (O-Ring Boss) fittings. For NPT-threaded cylinders, use HP4600.


Key Features & Benefits

  • Complete Seal & Gland Replacement – Includes everything needed for a full end gland service
  • Designed for ORB (-3) Cylinders – Use only with cylinders that have ORB-style hose ports
  • Includes All New HardwareDiscard old screws as new socket head screws are included
  • OEM-Grade Components – Meets or exceeds manufacturer standards
  • Easy, Step-by-Step Installation – No special tools required beyond common hand tools

Compatible Cylinder Models

Cylinder Part # Description
HC4645-3 BayStar Outboard Cylinder – Front Mount
HC4647-3 BayStar Outboard Cylinder – Front Mount
HC4648-3 BayStar Outboard Cylinder – Front Mount
HC4658-3 BayStar Outboard Cylinder – Front Mount

Kit Contents (HP4601)

Item Qty Description
1 End Gland (Port)
1 End Gland (Starboard)
2 Shaft Seals
2 Wipers
2 O-Rings
4 BHCS 1/4” NC x 1.5” SS Screws (New)
1 Seal Guide
1 Instruction Sheet

Downloads & Resources

  • BayStar HP4601 Installation Instructions
  • BayStar Front Mount Cylinder Installation Instructions
  • Dometic Warranty Information

Important Notes

  • Discard all old screws. The HP4601 includes new stainless screws.
  • Do not reuse old hardware.
  • Clean debris from the cylinder barrel face and screw holes before reassembly.
  • Use good quality marine grease and SeaStar steering fluid when reinstalling.
  • Does not include Internal, Center Seal

Installation Overview (not complete)

  1. Turn steering to hard over toward the gland being serviced to minimize fluid loss.
  2. Remove fittings and mark steering lines.
  3. Loosen socket cap screws, remove piston rod and support rod nuts.
  4. Slide off old gland and install the new one using the included seal guide.
  5. Install new screws and reassemble rod hardware.
  6. Bleed the steering system per standard BayStar instructions.

Related & Spare Parts

Item Part Number / Link Notes
BayStar Cylinder Seal Kit (NPT) HP4600 For cylinders ending in “H”
ORB Bleeder Tee Kit HF4203 For -3 ORB cylinders
Support Rod Kit, Bent HP6050 Includes 2 support rods
Pivot Plate

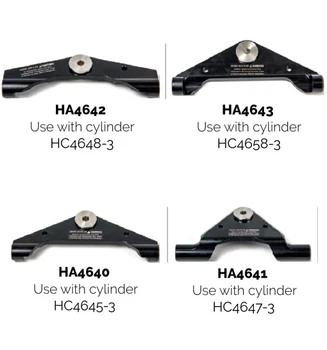

Cylinder HC4645-3 Replacement HA4640
Cylinder HC4647-3 Replacement HA4641
Cylinder HC4648-3 Replacement HA4642
Cylinder HC4658-3 Replacement HA4643
Hose Kits [HERE] Use approved BayStar hose kits
BayStar Helm Pumps [HERE] Compatible helms for system use
